Voodoo streaks-0

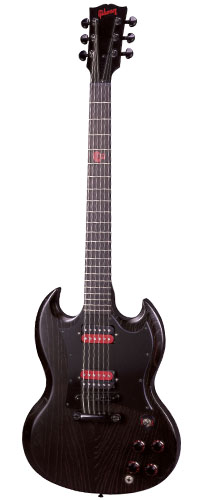

The SG Special Voodoo was a variant of the SG Special introduced in 2002 and features a distinctive finish; an ebony base coat, followed by red grain filler and sealed with a clear satin lacquer topcoat. Combined with the distinctive grain of Swamp Ash, it creates a look similar to bloody streaks across the body. It was discontinued in 2005.

Features Edit

  • 2002-2005

Body:

  • Beveled, solid Swamp Ash body
  • Nitrocellulose Lacquer finish
2004 voodoo 2

Neck:

  • 1-pc quartersawn Mahogany
  • '50s Rounded profile
  • Set-in construction
    • Franklin Titebond 50 glue
  • Joins body at 22nd fret
  • Ebony fretboard
    • Red acrylic Voodoo Skull at 5th fret
    • 12" radius
  • Open Book headstock
  • Red silkscreened Gibson logo
  • "Made in U.S.A." stamp
  • 17o headstock pitch
  • 22 frets
  • 24 9/16" scale
  • 1 11/16" nut width

Electronics:

  • Two "Black Magic" 496R/500T Humbuckers
    • Ceramic magnets
    • ~8.75k (neck), 10k (bridge) Ohms D.C. resistance
    • Red/black bobbins
  • 3-way switch
  • 2 Vol, 2 Tone

Hardware:

  • Black Hardware
  • Grover tuning machines
  • Single-ply "Batwing" pickguard
  • Bell shaped truss rod cover
    • Single-ply black
  • Black Bell knobs w/ red markings
  • Nashville Tune-O-Matic bridge and stopbar tailpiece
Snakeskin case 2

Finishes:

  • Juju

Case:

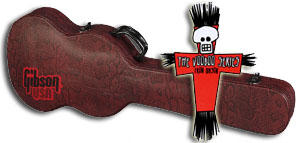

  • Red and black snakeskin "Python" case
