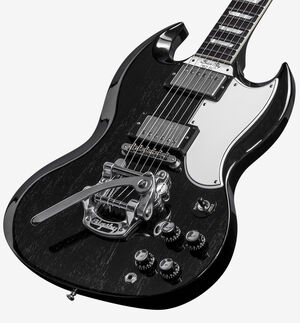

The Brian Ray Signature SG Standard was a 2015 Custom Shop model. It is based on the Historic SG Standard. A stopbar tailpiece is included and can be fitted without any modification or exposed holes from the Bigsby.

Features Edit

15 ray std 3
  • $5,099

Body:

  • Solid Honduran Mahogany body
  • One-piece construction
  • Historic deep beveling
  • Tapered horn tips
  • Nitrocellulose Lacquer finish

Neck:

  • 1-pc quartersawn Honduran Mahogany
  • Custom profile
  • Set-in construction
    • Hot hide glue
    • 4 degree angle
  • Joins body at 22nd fret
  • Indian Rosewood fretboard
    • Cellulose trapezoid inlays
    • 12" radius
  • Open Book headstock w/ Holly veneer
  • Inlaid Mother of Pearl Gibson logo
  • Inlaid Mother of Pearl Crown
  • 17headstock pitch
  • 22 frets
    • Leveled by Plek machine
      15 ray std 4

      Stopbar fitted

  • 24 5/8" scale
  • Nylon nut
    • Cut by Plek machine
  • 1 11/16" nut width

Binding:

  • Single-ply, neck

Electronics:

  • Custom wound Burstbucker 1 Humbucker (Neck)
    • AlNiCo III magnet
    • 8.0k Ohms DCR
    • Nickel plated cover
  • '57 Classic Plus Humbucker (Bridge)
    • AlNiCo II magnet
    • 8.5k Ohms DCR
    • Nickel plated covers
  • 3-way switch
  • 2 Vol, 2 Tone
    • Push/Pull coil split
    • CTS 500k pots
15 ray std

Hardware:

  • Nickel hardware
  • Kluson Deluxe tuning machines
    • 12:1 ratio
    • "Green Key" buttons
    • Single line
  • 3-ply white "Angel Wing" pickguard
    • Wide bevel angle
  • Bell shaped truss rod cover
    • Single-ply white, wide bevel angle
  • White single-ply tenon cover
    • "Brian Ray / '63 SG" engravig
  • Black Reflector knobs w/ pointers
  • ABR-1 Tune-O-Matic bridge
  • Bigsby B5 tremolo w/ Vibramate
    • Stopbar & studs included

Finishes:

  • Silver Fox
